INDUSTRIAL MELTING ~ HEAT TREAT FURNACES  AND ACCESSORIES

Electric Bench Top Melting Furnaces

Available in 2 Sizes: E4-O, EM-810

E4-O Bench Top Melter

If you’re looking for the ideal furnace to use in jewelry or hobby work or just wish to teach foundry on a small scale, the E4-0 Electric Bench Top Melter is for you. All the quality and performance of our largest melting furnaces has been engineered into an electric melter especially designed to receive a #4-0000 crucible. Because of it’s table top size and affordable price, the hobbyist can now enjoy the versatility of casting his own parts.

The E4-0 has a temperature range to 2050 F., allowing it to melt 1 to 1 1/2 lbs. of brass in just under 20 minutes from a cold start and about 10 minutes from a hot start. Using a digital, micro processor based controlling instrument, the E4-0 automatically reaches and maintains the precise temperature you have selected. The heating chamber consists of 4 individual heating elements, molded in ceramic fiber panels. Two inches of ceramic fiber insulation surround the chamber, with an extra insulating wall to insure cool instrument operation. All this in a furnace weighing only 50 lbs. See Printable Manual of this Model


 EM-810
Electric Bench Top Melting Furnace
(Not recommended for Bronze Melting)

Capacity - EM-810 : 8 - 10 lb. Aluminum, 24 - 30 lb. Brass

-----------------------------------------------------------------------------------------------------

Like the E4-0 described above, the EM-810 melter  is an excellent choice for the small jewelry manufacturer, laboratory, hobbyist, or educational environment. It features the same rugged construction and dependability found in all MIFCO products. The EM -810 is capable of melting most non-ferrous metals with a maximum chamber temperature of 2050F and is controlled by a digital temperature control instrument. All controls are solid state for long life and dependability. Heating elements are cast into a ceramic fiber tube, making element replacement quick and easy. The heating chamber is backed up by 2 inches of high temperature, fiber blanket insulation. The EM-810 accepts either a number 8 or 10 standard bilge-type crucible. The unit will fit on the optional Pouring Cart pictured with the unit, which places the furnace at a convenient height for removal of the crucible. The Pouring Cart is equipped with locking wheels for added safety and facilitates easy storage of the unit after melting. The EM-810 is available in 240 volt, single phase and is equipped with a plug and 15 ft. power cord.

See Printable Manual of this Model

EM-810 Accessory Kit

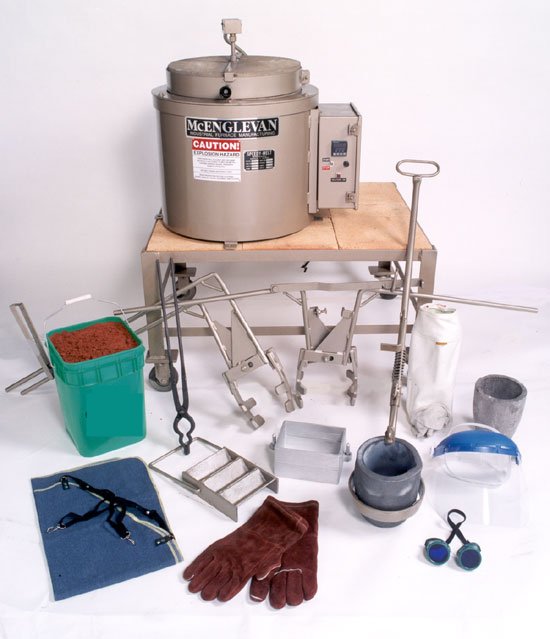

EM-810 Bench Top Melter with optional Pouring Cart and Accessory Kit

MIFCO has all the accessories you will need to start melting and casting metal with your new Bench-Top Melter. Shown at left are one and two person lifting tongs for removal of the crucible from the furnace, a one person hand pouring shank (two person available), charging tongs and crucibles. Crucibles are available in both clay graphite and silicon carbide. We also have 40 lb. buckets of pre-mixed, oil bonded foundry sand, cast aluminum and steel flasks, and ingot molds. Also shown are some basic items of protective clothing; denim apron, leather welder’s gloves, leggings, goggles and a face shield. We also sell an extensive line of high temperature resistant protective clothing that can be seen at our website. All of the pictured items are available in two packages - one for aluminum melting and one for brass melting. The items are also available separately.


DIMENSIONS AND SPECIFICATIONS OF ELECTRIC BENCH TOP MELTERS

FURNACE
MODEL
CRUCIBLE
SIZE
MELTING
CHAMBER
DIMENSIONS
A
Shell
Depth
B
Overall
Depth
C
Overall
Height
D
Shell
Height
E
Shell
Width
KW VOLTS PHASE SERVICE
SUPPLY
APPROX
SHIPPING
WEIGHT
E4-0 #4-0000 4" X 4" 8" 11 1/2" 14 1/2 20" 13" 18 1/4" 2.2 120 1 30 amp 52 lbs
EM-810 #8 - #10 11" 12" 16 1/2" 21" 26" 17 1/2" 26" 5 240 1 25 amp 235 lbs
